First off, this is intended as some research for a future application.

I want to be able to extract the coefficients from a c header file that is generated by the Matlab Filter Design and Analysis Tool (FDATool).

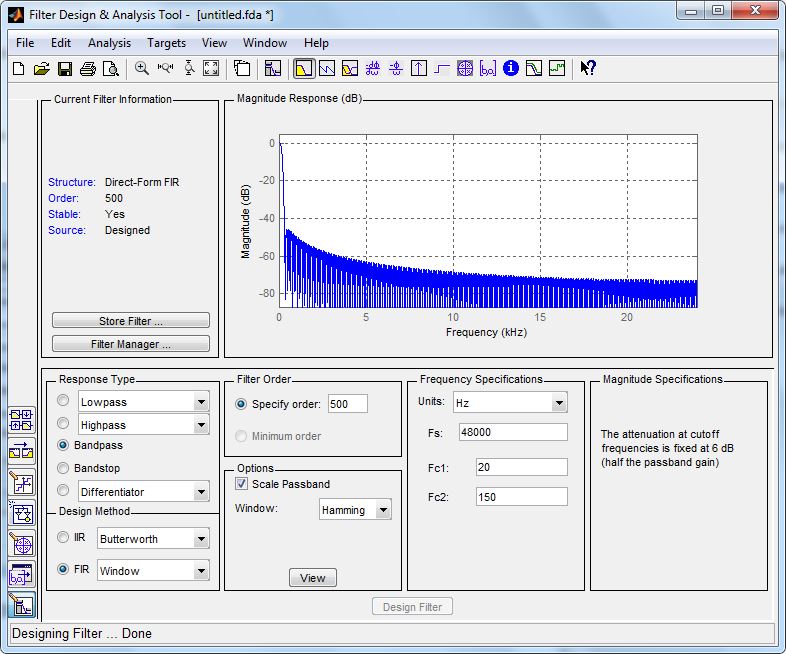

I have used the above settings for the FDATool and then I generated the following C header file:http://dl.dropbox.com/u/39710897/fdacoefs.h

As I understand it I can implement a filter from this by using a direct form difference equation. I believe the equation to be y(n) = b₀x(n) + b₁x(n–1) + b₂x(n–2) – a₁y(n–1) – a₂y(n–2)

where the b₀-b₂ coefficients are the zeroes and the a₁ and a₂ coefficients are the poles.

The problem here is that I'm not entirely sure what is in the header file. This information seems surprisingly hard to find which probably means I'm missing something really obvious..

Here is the information I think I've been able to extract:

• Filter is made up from 3 biquadratic (known as 'biquad') sections.
• The coefficients for section 1 are:
  • b0:0.129355475306511
  • b1:-1.997004866600037
  • b2:1.000000000000000
  • a1:-1.995552659034729
  • a2:0.996141731739044
• The coefficients for section 2 are:
  • b0:0.129355475306511
  • b1:-1.999969959259033
  • b2:1.000000000000000
  • a1:-1.997882604598999
  • a2:0.998035132884979
• The coefficients for section 3 are:
  • b0:0.011426069773734
  • b1:0.000000000000000
  • b2:-1.000000000000000
  • a1:-1.993502736091614
  • a2:0.993802070617676

Questions:

1. Is my difference equation suitable for use with the coefficients in the header file?
2. Is the information I extracted from the header file correct?

1 Answer

Looking at the screen shot you appear to be using Direct Form II biquad sections (aka Canonical Form) - see Wikipedia page: https://en.wikipedia.org/wiki/Digital_biquad_filter and note the difference equations for Direct Form II (you seem to be using the difference equation for Direct Form I above).

Note that the w terms are not labelled on the diagram on the Wikipedia page but they are the delayed terms in the middle.

Digital Filter Coefficient Generation Program Download

Not the answer you're looking for? Browse other questions tagged csignal-processing or ask your own question.

In signal processing, a finite impulse response (FIR) filter is a filter whose impulse response (or response to any finite length input) is of finite duration, because it settles to zero in finite time. This is in contrast to infinite impulse response (IIR) filters, which may have internal feedback and may continue to respond indefinitely (usually decaying).

The impulse response (that is, the output in response to a Kronecker delta input) of an Nth-order discrete-time FIR filter lasts exactly N + 1 samples (from first nonzero element through last nonzero element) before it then settles to zero.

FIR filters can be discrete-time or continuous-time, and digital or analog.

• 4Filter design

Definition[edit]

For a causaldiscrete-time FIR filter of order N, each value of the output sequence is a weighted sum of the most recent input values:

where:

• ${\displaystyle x[n]}$ is the input signal,
• ${\displaystyle y[n]}$ is the output signal,
• ${\displaystyle N}$ is the filter order; an ${\displaystyle N}$th-order filter has ${\displaystyle (N+1)}$ terms on the right-hand side
• ${\displaystyle b_i}$ is the value of the impulse response at the i'th instant for ${\displaystyle 0\le i\le N}$ of an ${\displaystyle N}$th-order FIR filter. If the filter is a direct form FIR filter then ${\displaystyle b_i}$ is also a coefficient of the filter.

This computation is also known as discrete convolution.

The ${\displaystyle x[n-i]}$ in these terms are commonly referred to as taps, based on the structure of a tapped delay line that in many implementations or block diagrams provides the delayed inputs to the multiplication operations. One may speak of a 5th order/6-tap filter, for instance.

The impulse response of the filter as defined is nonzero over a finite duration. Including zeros, the impulse response is the infinite sequence:

If an FIR filter is non-causal, the range of nonzero values in its impulse response can start before n = 0, with the defining formula appropriately generalized.

Properties[edit]

An FIR filter has a number of useful properties which sometimes make it preferable to an infinite impulse response (IIR) filter. FIR filters:

• Require no feedback. This means that any rounding errors are not compounded by summed iterations. The same relative error occurs in each calculation. This also makes implementation simpler.
• Are inherently stable, since the output is a sum of a finite number of finite multiples of the input values, so can be no greater than ${\displaystyle \sum b_i}$ times the largest value appearing in the input.
• Can easily be designed to be linear phase by making the coefficient sequence symmetric. This property is sometimes desired for phase-sensitive applications, for example data communications, seismology, crossover filters, and mastering.

The main disadvantage of FIR filters is that considerably more computation power in a general purpose processor is required compared to an IIR filter with similar sharpness or selectivity, especially when low frequency (relative to the sample rate) cutoffs are needed. However, many digital signal processors provide specialized hardware features to make FIR filters approximately as efficient as IIR for many applications.

Frequency response[edit]

The filter's effect on the sequence ${\displaystyle x[n]}$ is described in the frequency domain by the convolution theorem:

Digital Filter Coefficient Calculator

${\displaystyle \underset{Y(\omega )}{\underbrace{\mathcal{F}\{x\ast h\}}}=\underset{X(\omega )}{\underbrace{\mathcal{F}\{x\}}}\cdot \underset{H(\omega )}{\underbrace{\mathcal{F}\{h\}}}}$ and ${\displaystyle y[n]=x[n]\ast h[n]={\mathcal{F}}^{-1}\{X(\omega )\cdot H(\omega )\},}$

where operators ${\displaystyle \mathcal{F}}$ and ${\displaystyle {\mathcal{F}}^{-1}}$ respectively denote the discrete-time Fourier transform (DTFT) and its inverse. Therefore, the complex-valued, multiplicative function ${\displaystyle H(\omega )}$ is the filter's frequency response. It is defined by a Fourier series:

${\displaystyle H_{2\pi }(\omega )\triangleq \sum _{n=-\mathrm{\infty }}^{\mathrm{\infty }}h[n]\cdot {\left(e^{i\omega }\right)}^{-n}=\sum _{n=0}^N{b}_n\cdot {\left(e^{i\omega }\right)}^{-n},}$

where the added subscript denotes 2π-periodicity. Here ${\displaystyle \omega }$ represents frequency in normalized units (radians/sample). The substitution ${\displaystyle \omega =2\pi f,}$ favored by many filter design programs, changes the units of frequency ${\displaystyle (f)}$ to cycles/sample and the periodicity to 1.^{[note 1]} When the x[n] sequence has a known sampling-rate, ${\displaystyle f_s}$samples/second, the substitution ${\displaystyle \omega =2\pi f/f_s}$ changes the units of frequency ${\displaystyle (f)}$ to cycles/second (hertz) and the periodicity to ${\displaystyle f_s.}$ The value ${\displaystyle \omega =\pi }$ corresponds to a frequency of ${\displaystyle f=\frac{f_s}{2}}$Hz${\displaystyle =\frac{1}{2}}$cycles/sample, which is the Nyquist frequency.

${\displaystyle H_{2\pi }(\omega )}$ can also be expressed in terms of the Z-transform of the filter impulse response:

${\displaystyle \hat{H}(z)\triangleq \sum _{n=-\mathrm{\infty }}^{\mathrm{\infty }}h[n]\cdot z^{-n}.}$

${\displaystyle H_{2\pi }(\omega )={\hat{H}(z)}_{z=e^{j\omega }}=\hat{H}(e^{j\omega }).}$

Filter design[edit]

An FIR filter is designed by finding the coefficients and filter order that meet certain specifications, which can be in the time domain (e.g. a matched filter) and/or the frequency domain (most common). Matched filters perform a cross-correlation between the input signal and a known pulse shape. The FIR convolution is a cross-correlation between the input signal and a time-reversed copy of the impulse response. Therefore, the matched filter's impulse response is 'designed' by sampling the known pulse-shape and using those samples in reverse order as the coefficients of the filter.^[1]

When a particular frequency response is desired, several different design methods are common:

1. Frequency Sampling method
2. Parks-McClellan method (also known as the Equiripple, Optimal, or Minimax method). The Remez exchange algorithm is commonly used to find an optimal equiripple set of coefficients. Here the user specifies a desired frequency response, a weighting function for errors from this response, and a filter order N. The algorithm then finds the set of ${\displaystyle (N+1)}$ coefficients that minimize the maximum deviation from the ideal. Intuitively, this finds the filter that is as close as possible to the desired response given that only ${\displaystyle (N+1)}$ coefficients can be used. This method is particularly easy in practice since at least one text^[2] includes a program that takes the desired filter and N, and returns the optimum coefficients.
3. Equiripple FIR filters can be designed using the FFT algorithms as well.^[3] The algorithm is iterative in nature. The DFT of an initial filter design is computed using the FFT algorithm (if an initial estimate is not available, h[n]=delta[n] can be used). In the Fourier domain or FFT domain the frequency response is corrected according to the desired specs, and the inverse FFT is then computed. In the time-domain, only the first N coefficients are kept (the other coefficients are set to zero). The process is then repeated iteratively: the FFT is computed once again, correction applied in the frequency domain and so on.

Software packages like MATLAB, GNU Octave, Scilab, and SciPy provide convenient ways to apply these different methods.
